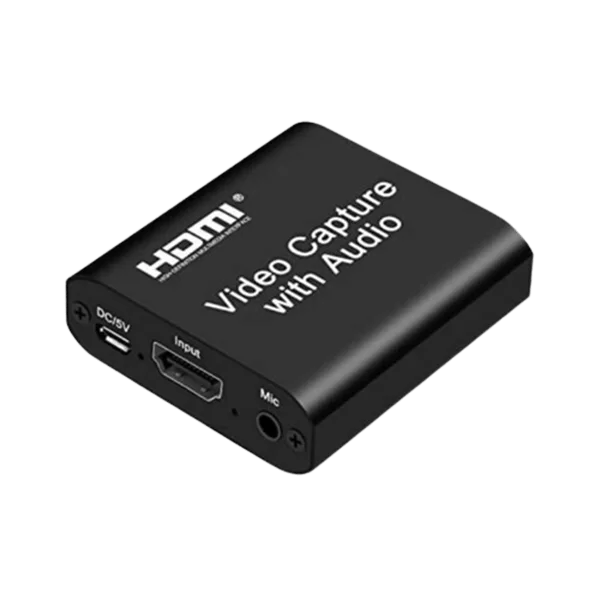

4K HDMI Video Audio Capture Card

4K HDMI Video Audio Capture Card Specifications:

• Input:

  • HDMI Input: 1 x HDMI 2.0 (supports 4K @ 60Hz, HDR, and 8/10/12-bit color depth)
  • Audio Input: Embedded audio via HDMI (supports 7.1 surround sound)

• Output:

  • USB Output: USB 3.0 or USB-C for fast data transfer to PC or laptop (supports up to 5Gbps bandwidth)

• Video Resolution:

  • Supports up to 4K (3840×2160) at 60Hz for input capture
  • Backward compatible with 1080p (1920×1080) and 720p (1280×720)

• Audio:

  • Supports HDMI audio pass-through, including 5.1 and 7.1 channel surround sound
  • Sample Rate: 44.1kHz, 48kHz, 96kHz
  • Bit Depth: 16-bit or 24-bit depending on the model

• Capture Format:

  • Captures video in popular formats such as H.264, H.265, or RAW video (depending on the device)

• Latency:

  • Low latency capture for real-time video streaming (typically < 100ms)

• Power Supply:

  • Powered via USB 3.0 connection (no external power supply required)

• Compatibility:

  • Windows: Windows 7, 8, 10, and later
  • macOS: macOS 10.9 or later
  • Linux: Compatible with various Linux distributions
  • Works with streaming software like OBS Studio, XSplit, Streamlabs, and others.

• Software Support: Includes drivers and software for video streaming, recording, and editing (often bundled with software such as OBS or compatible with third-party tools).

• Connectors:

  • HDMI Input: 1 x HDMI 2.0
  • USB Output: 1 x USB 3.0 or USB-C port for connection to a PC or laptop
  • Audio Input: Embedded in HDMI signal

• Dimensions:

  • Varies based on model, typically compact (about 3-5 inches in length)

• Additional Features:

  • Plug and Play: No additional drivers or setup required in many cases
  • Hardware Encoding/Decoding: Some models feature hardware-based encoding/decoding to reduce CPU load
  • Streaming Support: Supports live streaming for platforms like Twitch, YouTube, and Facebook Live.

Key Features:

• Capture high-definition video up to 4K @ 60Hz from HDMI sources
• Easy connection with USB 3.0 for high-speed data transfer
• Supports HDMI pass-through for audio capture, including 7.1 surround sound
• Compatible with popular streaming software and platforms
• Low latency for real-time video streaming
