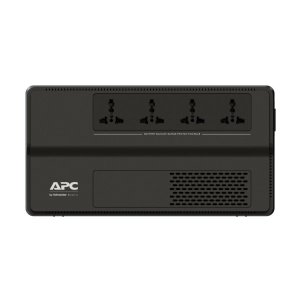

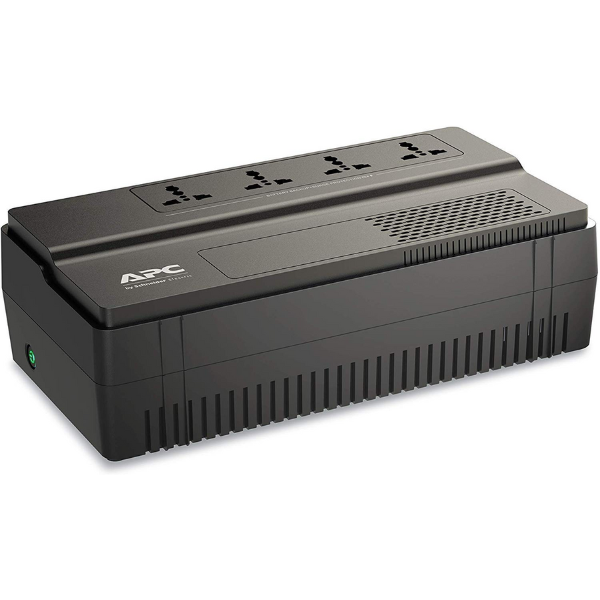

Apc easy ups bv 1000va avr universal outlet 230v

Technical Specifications

• Capacity: 1000 VA / 600 W

• Input Voltage: 230 V AC

• Output Voltage: 230 V AC

• Input Frequency: 50/60 Hz ± 5 Hz (auto-sensing)

• Output Frequency: 50/60 Hz ± 1 Hz (unsynchronized)

• Topology: Line-interactive

• Waveform Type: Stepped approximation to a sinewave

• Transfer Time: 6 ms typical; 10 ms maximum

• Surge Energy Rating: 156 Joules

• Battery Type: Maintenance-free sealed lead-acid

• Expected Battery Life: 3–5 years

• Replacement Battery: RBC17

• Mounting Support: Floor mount; not rack-mountable

• USB Compatible: No

• Control Panel: LED status display with on-line and on-battery indicators

• Audible Alarms: Battery operation, low battery, overload

---

Physical Dimensions

• Height: 9.25 cm

• Width: 16.05 cm

• Depth: 30.5 cm

• Net Weight: 5.7 kg

• Shipping Weight: 6.0 kg

---

Environmental Specifications

• Operating Temperature: 0–40 °C

• Operating Humidity: 0–90% (non-condensing)

• Operating Elevation: Up to 2,000 m

• Storage Temperature: -20–50 °C

• Storage Humidity: 0–90% (non-condensing)

• Storage Elevation: Up to 15,240 m

• Acoustic Level: 40 dBA

• Protection Class: IP20

---

Outlets and Connections

• Input Connection: BS1363A British

• Output Connections: 4 universal receptacles

• Cable Length: 1.5

Certifications and Standards

• Certifications: CE

• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

---

Features

• Automatic Voltage Regulation (AVR): Corrects voltage variations to provide reliable power

• Cold Start Function: Allows the UPS to start up without utility power

• User-Replaceable Battery: Ensures easy maintenance and extended service life

• Compact Design: Sleek black design suitable for home or office environments
