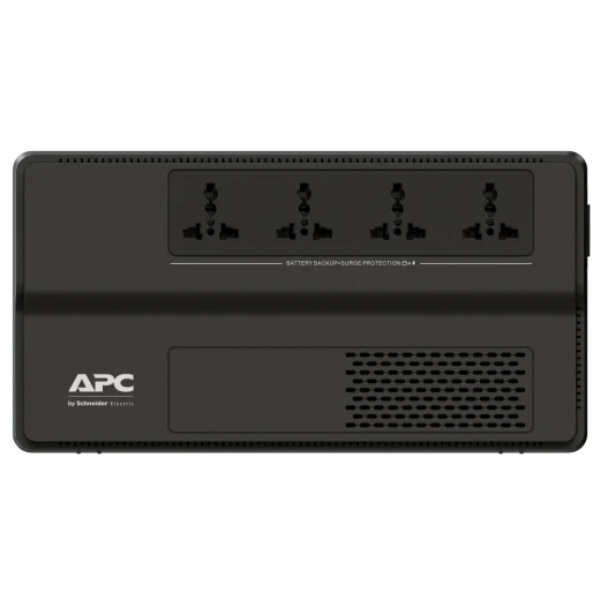

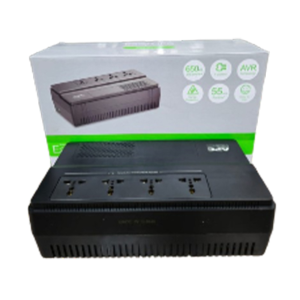

APC EASY UPS BV 650VA, AVR, UNIVERSAL OUTLET, 230V (BV650IMSX )

⚡ Electrical Specifications

• Capacity: 650VA / 375W
• Topology: Line-Interactive UPS with Automatic Voltage Regulation (AVR)
• Input Voltage: 230V AC
• Input Voltage Range: 140 – 300V AC
• Output Voltage: 230V AC ± 10%
• Waveform Type: Stepped Approximation to Sine Wave
• Frequency: 50/60Hz ± 1Hz (auto-sensing)
• Transfer Time: 6–10ms (typical), ensures near-instant power transition

---

🔋 Battery & Backup

• Battery Type: Sealed Lead-Acid, Maintenance-Free
• Battery Voltage: 12V
• Battery Capacity: 7Ah
• Backup Time:
  • 10–15 minutes for low loads (router, modem, small devices)
  • 3–5 minutes at full load (PC, monitor, peripherals)
• Recharge Time: 6–8 hours for full charge
• Battery Protection: Overcharge and deep discharge protection

---

🛡️ Protection & Features

• Automatic Voltage Regulation (AVR): Corrects voltage fluctuations to stabilize power supply
• Surge Protection: Shields connected devices from power surges and spikes
• Overload & Short Circuit Protection: Prevents damage from excessive load or electrical faults
• Auto-Restart: Automatically powers on after a power outage

---

🔌 Ports & Connectivity

• Output Sockets: 4 × Universal Outlets (compatible with multiple plug types)
• USB/Communication Ports: Not available on this model

---

📦 Physical & Build

• Design: Compact, lightweight, fanless for silent operation
• Cooling System: Passive cooling (no fan noise)
• Dimensions (H × W × D): Approx. 92mm × 160mm × 305mm
• Weight: Approx. 4.5 kg

---

🔊 Indicators & Alerts

• LED Indicators: Power ON, Battery Mode, Fault Status
• Audible Alarm: Beeps for power failure, low battery, and overload warnings

---

✅ Key Benefits:

✔ Reliable backup power for computers, routers, and home electronics
✔ Automatic Voltage Regulation (AVR) for stable power output
✔ Universal outlets for compatibility with different plug types
✔ Compact, silent design ideal for home and office environments
