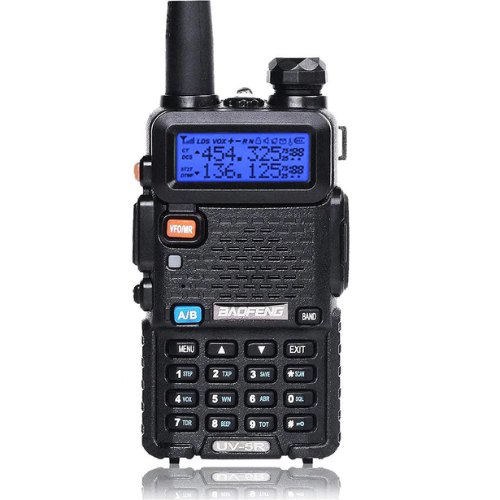

Baofeng UV-5R 5km Range Walkie Talkie

Frequency Range:

• VHF: 136–174 MHz

• UHF: 400–520 MHz

Output Power:

• VHF: Up to 5 W

• UHF: Up to 4 W

• Low Power Mode: 1 W

Channels & Codes:

• 128 programmable memory channels

• 50 CTCSS and 104 DCS privacy codes

Battery:

• 1800 mAh Li-ion (7.4 V)

• Usage time: up to ~12 hours depending on usage

• Includes desktop charger

Receiver & Audio:

• Sensitivity: ≤ 0.2 µV (at 12 dB SINAD)

• Audio Output: ~1 W loudspeaker

Transmitter Specs:

• Modulation: FM (Wide/Narrow)

• Max Deviation: ±5 kHz (wide), ±2.5 kHz (narrow)

Antenna & Construction:

• Antenna: SMA-Female, 50 Ω impedance

• Size: Approx. 110 × 58 × 32 mm

• Weight: ~210–240 g (with battery and antenna)

Functions:

• Dual-band display and dual standby

• VOX (hands-free), emergency alarm, LED flashlight

• Keypad lock, time-out timer, busy channel lockout

Environment:

• Operating Temperature: –20 °C to +60 °C
