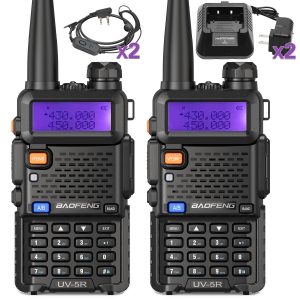

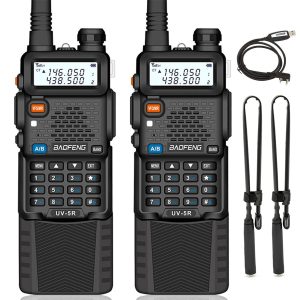

BaoFeng UV-5R Dual Radio 5-8KM (2Pieces)

General Specifications

• Model: Baofeng UV-5R (2-pack)

• Frequency Range:

  • VHF: 136–174 MHz

  • UHF: 400–520 MHz

• Channels: 128 programmable channels

• Channel Spacing: 2.5/5/6.25/10/12.5/25 kHz

• Operating Voltage: 7.4V DC

• Battery Type: 1800 mAh Li-ion rechargeable battery

• Battery Life: Approximately 8 hours under a 5-5-90 duty cycle

• Antenna Impedance: 50Ω

• Operating Temperature: –20°C to +60°C

• Dimensions (without antenna): 109.5 × 59.5 × 34.5 mm

• Weight: Approximately 225g per unit

---

Receiver Specifications

• Sensitivity (12dB SINAD):

  • Wideband: ≤0.20 µV

  • Narrowband: ≤0.20 µV

• Intermodulation: ≥60 dB

• Adjacent Channel Selectivity:

  • Wideband: ≥65 dB

  • Narrowband: ≥60 dB

• Maximum Deviation:

  • Wideband: ≤±5 kHz

  • Narrowband: ≤±2.5 kHz

• Audio Power Output: 1W

---

Transmitter Specifications

• RF Power Output:

  • High: 5W

  • Low: 1W

• Modulation Type: FM

• Maximum Deviation:

  • Wideband: ≤±5 kHz

  • Narrowband: ≤±2.5 kHz

• Emission Class:

  • Wideband: 16kΦF3E

  • Narrowband: 11kΦF3E

• Spurious Emission: <–60 dB

---

Features

• Dual-Band Operation: Simultaneous display and standby on VHF and UHF frequencies

• VOX Function: Hands-free operation

• FM Radio Reception: 65–108 MHz

• Emergency Alert: Built-in alarm function

• Battery Saver: Extends battery life

• Time-Out Timer (TOT): Prevents overheating and excessive transmission

• Keypad Lock: Prevents accidental key presses

• Monitor Channel: Allows monitoring of a specific channel

• LED Flashlight: Built-in for low-light situations

---

Package Contents

• 2 × Baofeng UV-5R Dual-Band Two-Way Radios

• 2 × 1800 mAh Li-ion Rechargeable Batteries

• 2 × High-Gain Antennas

• 2 × Belt Clips

• 2 × Earpieces for Hands-Free Use

• 2 × Desktop Charging Docks

• 1 × User Manual
