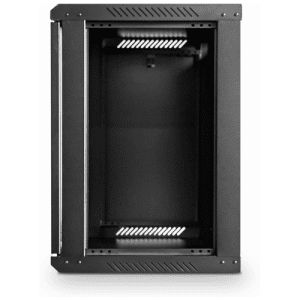

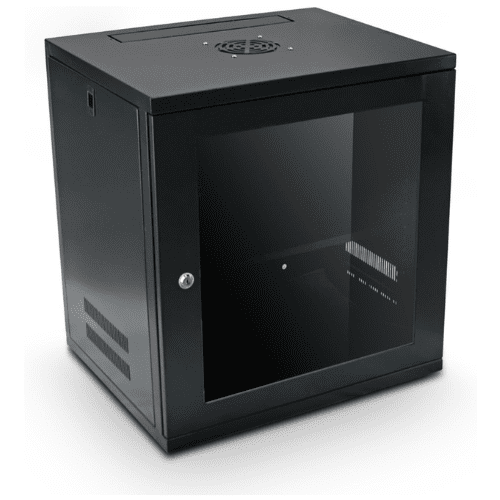

Cabinet 9U 600 × 600 mm Wall-Mounted with Fan and PDU Specifications

General Specifications

• Cabinet Type: Wall-Mounted Network/Data Cabinet
• Rack Standard: 19-inch EIA Standard
• Rack Height: 9U
• External Dimensions:
  • Width: 600 mm
  • Depth: 600 mm
  • Height: Approximately 500 mm
• Color: Black Powder-Coated Finish
• Material: SPCC Cold-Rolled Steel
• Static Load Capacity: Up to 60 kg

Door and Panels

• Front Door: Lockable Tempered Glass
• Side Panels: Removable for easy access
• Rear Panel: Fixed or removable depending on model
• Front Door Lock with Key
• Cable Entry Ports at Top and Bottom
• Ventilation Slots for Improved Airflow

Cooling System

• 1 × Top-Mounted Cooling Fan
• Fan Voltage: 220V AC
• Provides Active Heat Dissipation
• Additional Ventilation Openings Available

Power Distribution Unit (PDU)

• 1 × Rack-Mount PDU Included
• 6 Universal Power Sockets
• Built-In Power Switch
• 1.8 m Power Cable
• Suitable for Switches, NVRs, Routers, and UPS Systems

Mounting Rails

• 4 Adjustable 19-inch Mounting Rails
• Rack Units Marked for Easy Installation
• Suitable for:
  • Patch Panels
  • Network Switches
  • Routers
  • NVRs
  • Fiber Equipment
  • Shelf Accessories

Construction

• Heavy-Duty Steel Frame
• Powder-Coated Anti-Rust Finish
• Toughened Glass Front Door
• Grounding Provision
• IP20 Indoor Protection Rating
