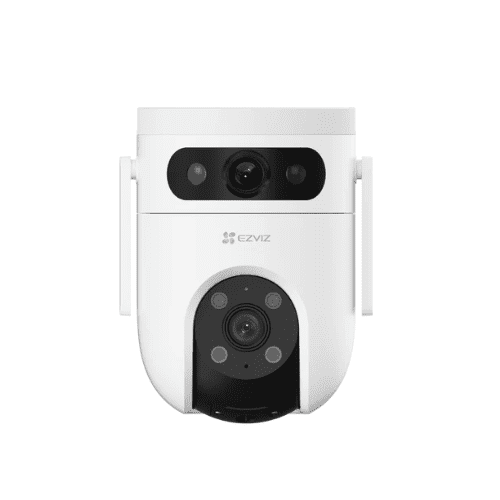

EZVIZ H9c 3K Dual-Lens Pan & Tilt Wi-Fi Outdoor Camera Detailed Specifications

Camera & Imaging

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Resolution: Dual 3K lenses (2880 × 1620 each)
• Shutter Speed: Self-adaptive
• Day/Night Mode: IR-cut filter with auto switching
• Digital WDR
• 3D DNR Noise Reduction
• H.265/H.264 video compression
• Adaptive bit rate control

Dual-Lens Design

Upper Wide-Angle Camera

• Lens: 2.8 mm @ F1.6
• Horizontal FOV: 108°
• Vertical FOV: 56°
• Diagonal FOV: 130°
• Manually adjustable 240° horizontal rotation
• 15° preset tilt adjustment

Lower Telephoto PT Lens

• Lens: 6 mm @ F1.6
• Horizontal FOV: 55°
• Vertical FOV: 28°
• Diagonal FOV: 62°
• Motorized Pan & Tilt for full-area coverage

PT (Pan & Tilt) Performance

• Pan Range: 350°
• Tilt Range: 80°
• 360° panoramic coverage
• Smart patrol modes
• Auto smart tracking
• Linked-view operation between the two lenses

AI Detection Features

• AI Human Shape Detection
• AI Vehicle Detection
• Motion Detection
• Co-Detection for Auto Smart Tracking
• One-Tap Linked View Change
• Customized Alert Areas
• Automatic patrol and target tracking

Night Vision

• Full-Color Night Vision
• Infrared Night Vision
• Smart Color Mode
• IR Range: Up to 30 m
• Color Night Vision: Up to 40 m when both lenses face the same direction
• Powerful built-in spotlights

Active Defense

• Built-in Siren
• Flashing Strobe Lights
• Real-time intrusion warning
• Automatic deterrence upon detection

Audio

• Built-in Microphone
• Built-in Speaker
• Two-Way Audio Communication
• Noise suppression
• Real-time talk via EZVIZ App

Storage

• MicroSD Card Support
• Maximum Capacity: 512 GB
• EZVIZ CloudPlay Storage Support
• Encrypted cloud storage options available

Network

Wi-Fi

• IEEE 802.11 b/g/n
• Frequency: 2.4 GHz
• WPA/WPA2 Security
• AP Pairing

Wired

• 10/100 Mbps RJ45 Ethernet Port
• EZVIZ Cloud Protocol Support

Smart Integration

• EZVIZ App
• Amazon Alexa Compatible
• Google Assistant Compatible
• Linked-view operation between lenses
• Smart notifications and playback
