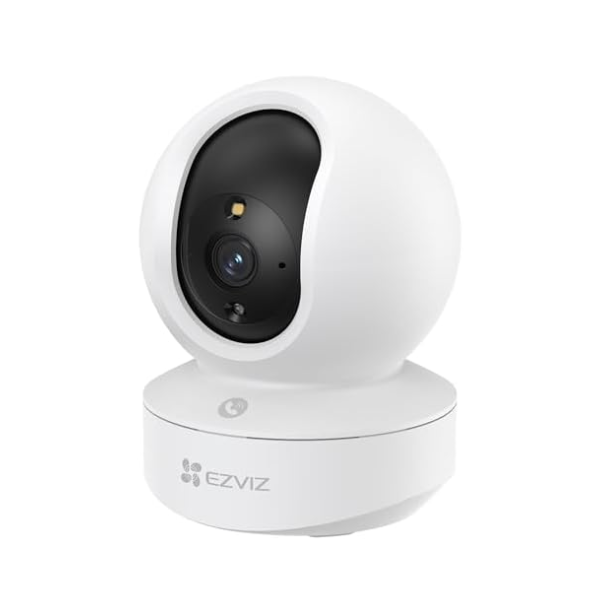

Ezviz Ty1 Camera 1080P Smart PTZ Pan Tilt Zoom WiFi in Kenya

Camera Specifications

• Image Sensor: 1/3″ Progressive Scan CMOS

• Lens: 4mm @ F2.4

• Field of View:

  • Diagonal: 85°

  • Horizontal: 75°

  • Vertical: 45°

• Shutter Speed: Self-adaptive

• Day & Night Functionality: IR-cut filter with auto-switching

• Digital Noise Reduction (DNR): 3D DNR

• Wide Dynamic Range (WDR): Digital WDReBay+1YouTube+1EZVIZ+2Almiria Kenya+2EZVIZ+2

---

Video & Audio

• Resolution:

  • 3MP (2048 × 1536)

  • 4MP (2560 × 1440)

• Frame Rate: Up to 15 fps; self-adaptive during network transmission

• Video Compression: H.264

• Audio: Two-way audio with built-in microphone and speakerEZVIZ+3Almiria Kenya+3EZVIZ+3

---

Network & Connectivity

• Wi-Fi Standards: IEEE 802.11b/g/n

• Frequency Range: 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth: Supports 20 MHz

• Security Protocols: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Transmission Rate:

  • 11b: 11 Mbps

  • 11g: 54 Mbps

  • 11n: 72 Mbps

• Wi-Fi Pairing: AP pairing

• Protocol: EZVIZ Cloud proprietary protocolEZVIZ+3Almiria Kenya+3EZVIZ+3

---

Storage Options

• Local Storage: Supports microSD card up to 256 GB

• Cloud Storage: Supports EZVIZ CloudPlay (subscription required)

---

General Specifications

• Operating Conditions:

  • Temperature: -10°C to 45°C (14°F to 113°F)

  • Humidity: 95% or less (non-condensing)

• Power Supply: DC 5V / 1A

• Power Consumption: Maximum 5W

• Dimensions: 88 × 88 × 118.7 mm (3.46 × 3.46 × 4.67 inches)

• Net Weight: 259 g (9.14 oz)

---

In the Box

• Included:

  • TY1 Pan/Tilt Camera

  • Base

  • Screw Kit

  • 3-meter Power Cable (9.8 ft.)

  • Power Adapter

  • Drill Template

  • Quick Start Guide
