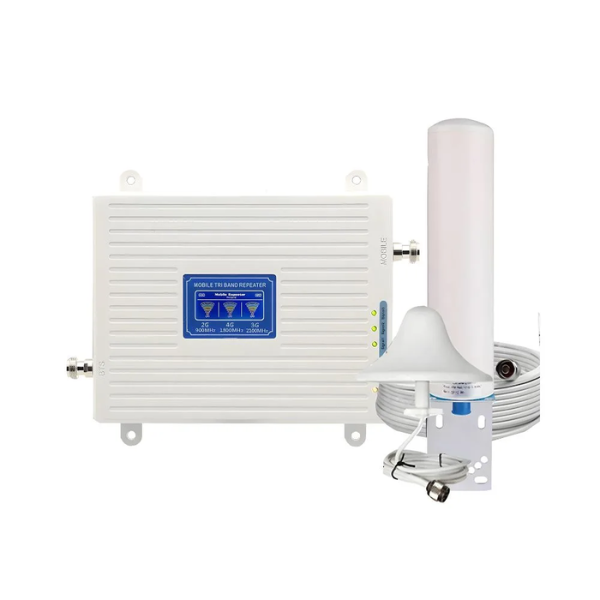

GSM Voice Network Signal Boosters Triband 2G 3G 4G

Key Features:

• Frequency Bands:

  • 2G: 900 MHz / 1800 MHz
  • 3G: 2100 MHz / 900 MHz
  • 4G: 800 MHz / 1800 MHz / 2600 MHz (depending on model and region)

• Network Coverage:

  • Supports 2G, 3G, and 4G networks across multiple frequencies to improve voice and data signals.
  • Coverage area can range from 100m² to 1000m² or more, depending on the model and conditions.

• Signal Gain:

  • Gain typically ranges from 50dB to 70dB (decibels), which determines the level of signal amplification.
  • Higher gain provides better coverage and improved signal quality.

• Max Output Power:

  • Can typically range from 10 to 30 dBm depending on the booster.
  • Higher power translates to stronger signal output.

• Transmission Power:

  • 2G: 10-20 dBm
  • 3G: 20-23 dBm
  • 4G: 23-30 dBm (varies by model and region)

• Indoor Antenna:

  • Typically a panel antenna or ceiling antenna, designed to distribute the boosted signal inside the building or area.
  • Directional or omnidirectional antennas may be used depending on the setup.

• Outdoor Antenna:

  • Usually an external Yagi or log-periodic antenna that connects to the booster to capture the outside signal.
  • Outdoor antenna can be installed on the roof or high up for optimal reception.

• Power Supply:

  • AC Powered: Generally operates on a standard 110V to 240V AC power source.
  • Some models may include DC-powered options for specific needs (like vehicles).

• Automatic Gain Control (AGC):

  • Automatically adjusts the signal strength to prevent interference and optimize performance based on signal conditions.

• Compatibility:

  • Compatible with various network carriers (Check local carrier frequencies for full compatibility).
  • Works for both voice and data, improving call quality and internet speeds.

• Installation:

  • Easy setup with plug-and-play installation.

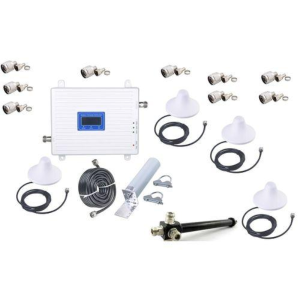

  • Includes all necessary components (booster, indoor/outdoor antennas, cables).

• Safety and Regulatory Compliance:

  • Certified to meet FCC, CE, and RoHS standards for safe operation.
  • Built-in overload protection, signal oscillation control, and thermal protection for safety.

• Temperature Range:

  • Typically operates in the range of -10°C to 55°C (14°F to 131°F).

Additional Features:

• LED Indicators: Signal strength, power, and status indicators.
• Noise Reduction: Reduces external interference for clearer communication.
• Coverage Area Customization: Some models allow for adjustable gain to target specific areas of a building or zone.

Applications:

• Ideal for improving signal in homes, offices, rural areas, or places with poor GSM coverage.
• Works with mobile carriers that support GSM, 3G, and 4G LTE networks.
