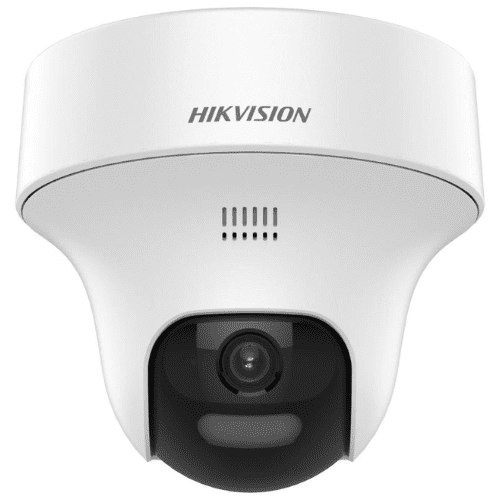

Hikvision 2MP Two Way Audio & Siren Fixed PT Camera DS-2CE70DOT-PTLXTS

Hikvision DS-2CE70D0T-PTLXTS Detailed Specifications

Camera & Imaging

• Image Sensor: 2 MP CMOS
• Maximum Resolution: 1920 × 1080 (Full HD)
• Effective Pixels: 2 Megapixels
• Minimum Illumination:
  • 0.01 Lux @ F1.6 (AGC ON)
  • 0 Lux with IR
• Day/Night Mode:
  • Auto
  • Color
• Shutter Speed:
  • PAL: 1/12.5s to 1/50,000s
  • NTSC: 1/15s to 1/50,000s
• Digital WDR (Wide Dynamic Range)

Lens Options

Available Versions:

• 2.8 mm Fixed Lens
• 3.6 mm Fixed Lens

2.8 mm Lens

• Horizontal FOV: 105°
• Vertical FOV: 59°
• Diagonal FOV: 127°

3.6 mm Lens

• Horizontal FOV: 87°
• Vertical FOV: 46°
• Diagonal FOV: 105°
• Lens Mount: M12
• Aperture: F1.6

PT (Pan & Tilt) Adjustment

• Pan Range: 0° to 350°
• Tilt Range: 0° to 100°
• Fixed PT turret design for flexible installation angles

Smart Hybrid Light

The camera automatically switches between IR and white light depending on activity.

• IR Distance: Up to 25 meters
• White Light Distance: Up to 20 meters
• Smart Hybrid Light Technology
• Better night visibility and reduced light pollution

Active Deterrence Features

Built-in warning functions help scare away intruders.

• Active Strobe Light Alarm
• Red & Blue Flashing Warning Lights
• Built-in Siren
• Audible Warning Messages
• Real-time deterrence capability

Audio Features

Built-In:

• Microphone
• Speaker

Functions:

• Two-Way Audio Communication
• Audio Over Coaxial Cable
• Echo Cancellation
• AI Noise Reduction
• Automatic Gain Control (AGC)

Audio Range:

• Microphone Pickup Distance: Up to 5 m
• Speaker Broadcast Distance: Up to 5 m

Video Features

• TVI Output: 1080p @ 25/30 fps
• Smart IR
• Brightness Adjustment
• Sharpness Adjustment
• Anti-Banding

Image Enhancement:

• Digital WDR
• BLC (Backlight Compensation)
• HLC (Highlight Compensation)
• 2D DNR Noise Reduction
• HLS Enhancement
• White Balance Control

Interface

• 1 × HD Analog Video Output
• Audio Over Coax Support
• HIKVISION-C Communication Protocol
• Compatible with Hikvision Turbo HD DVRs

Power

• Power Supply: 12V DC ±25%
• Maximum Consumption: 10.5W
• Recommended dedicated adapter per camera for stable performance

Environmental Protection

• Operating Temperature:
  • -40°C to 60°C
• Humidity:
  • ≤90% RH (non-condensing)
• Suitable for outdoor and indoor installations

Physical Specifications

• Dimensions: Ø123.7 mm × 110.8 mm
• Weight: Approximately 345 g
• Housing Material: Plastic
