Mikrotik CCR2004-16G-2S+ Router

Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

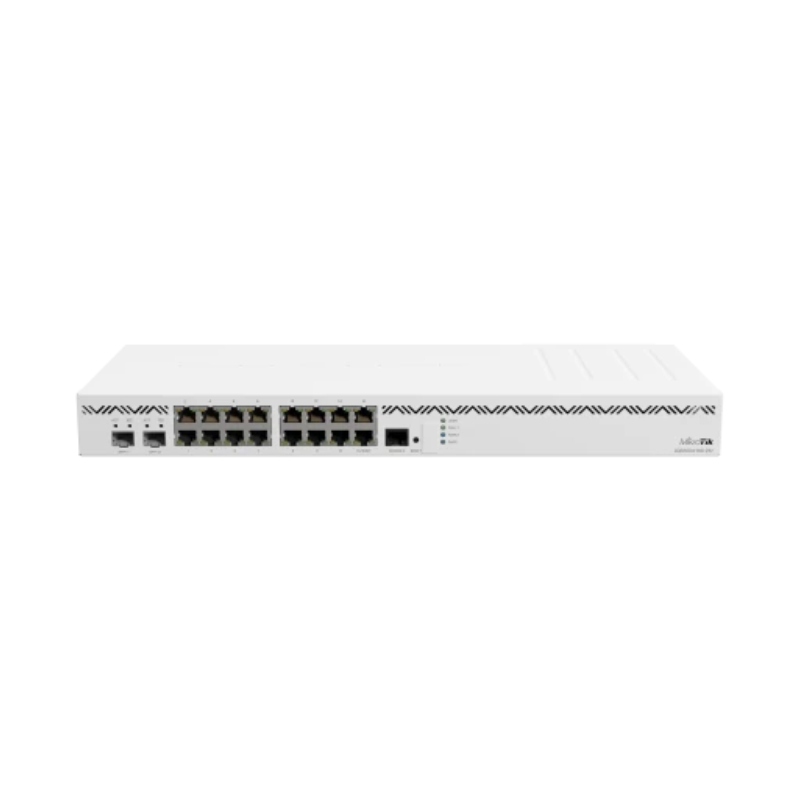

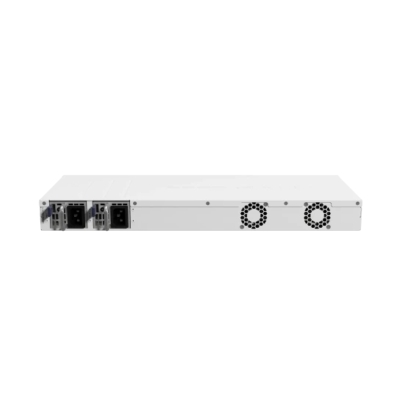

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage – a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

So as you can see – no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016.

Specifications

Details
Product code	CCR2004-16G-2S+
Architecture	ARM 64bit
CPU	AL32400
CPU core count	4
CPU nominal frequency	1700 MHz
Switch chip model	88E6191X
Dimensions	443 x 210 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-20°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$465.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Frequency (Hz)	47-63
Max power consumption	48 W
Max power consumption without attachments	35 W
Cooling type	2 fans

Ethernet

Details
10/100/1000 Ethernet ports	16

Fiber

Details
SFP+ ports	2

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
