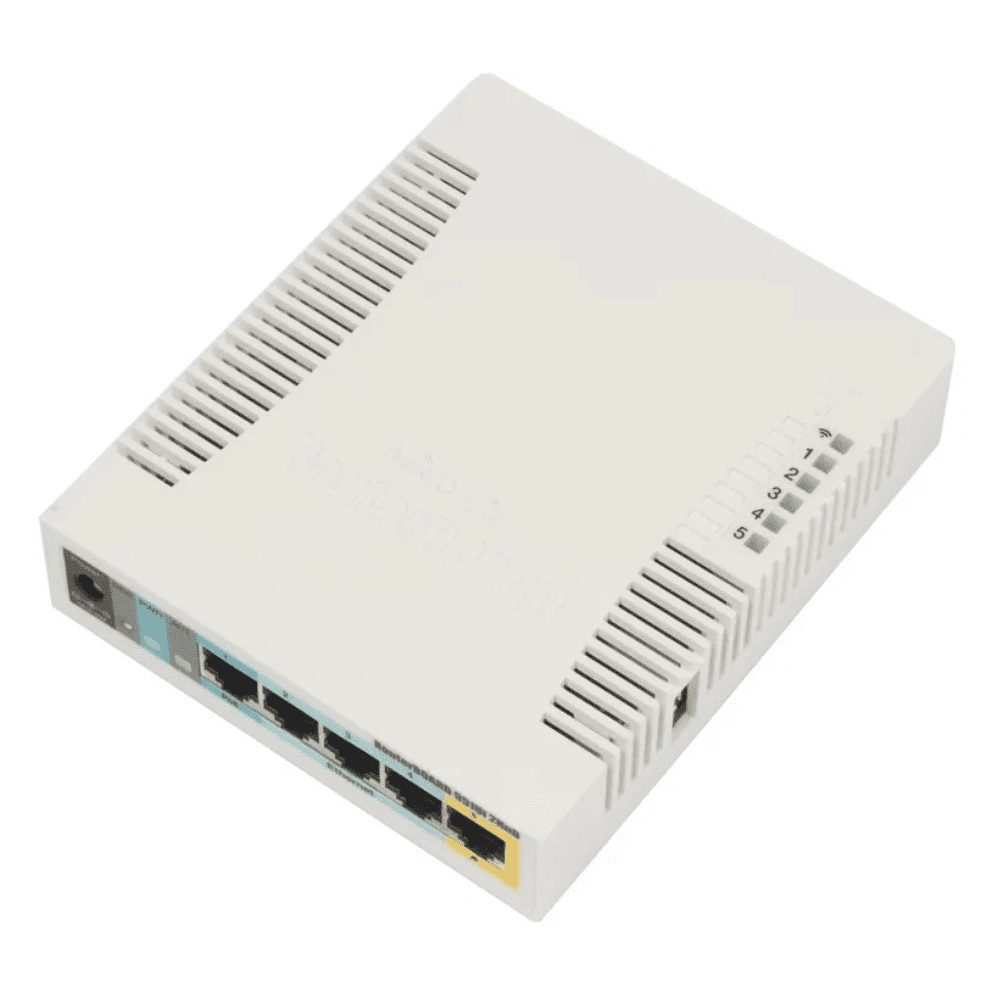

MikroTik RB951Ui-2HnD 2.4GHz AP with five Ethernet ports and PoE | Vestek ICT

MikroTik RB951Ui-2HnD

Wireless Features

• Wireless Standards: IEEE 802.11b/g/n
• Frequency Band: 2.4GHz
• Wi-Fi Generation: Wi-Fi 4
• Maximum Wireless Speed: 300 Mbps
• Wireless Chains: 2×2 MIMO
• Antenna Gain: 2.5 dBi built-in antennas
• Wireless Chipset: Qualcomm/Atheros AR9344
• Transmit Power: Up to 30 dBm (1000mW)

Ethernet & Networking

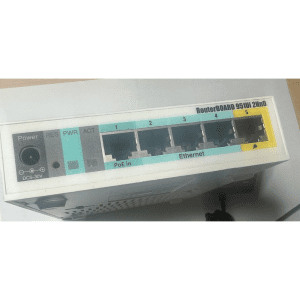

• Ethernet Ports: 5 × 10/100 Fast Ethernet ports
• PoE Output: Passive PoE-out on Ether5
• PoE Output Voltage: Same as input voltage (8–30V)
• Maximum PoE Output Current: 500mA
• PoE Input: Passive PoE supported on Ether1

Hardware Specifications

• CPU: Qualcomm Atheros AR9344
• CPU Speed: 600 MHz
• CPU Cores: 1 Core
• Architecture: MIPSBE
• RAM: 128 MB
• Storage: 128 MB NAND
• RouterOS License: Level 4
• Operating System: MikroTik RouterOS

Ports & Interfaces

• USB Port: 1 × USB 2.0 Type-A
• USB Max Current: 1A
• DC Input: 8–30V
• Power Inputs: DC Jack + Passive PoE-In

Physical Details

• Dimensions: 113 × 138 × 29 mm
• Cooling: Passive cooling (fanless)
• Enclosure: Desktop plastic case
• IP Rating: IP20

Power & Consumption

• Maximum Power Consumption: 24W
• Without Attachments: Approx. 7W

Environmental Specs

• Operating Temperature: -20°C to +60°C
• MTBF: Approx. 100,000 hours at 25°C
