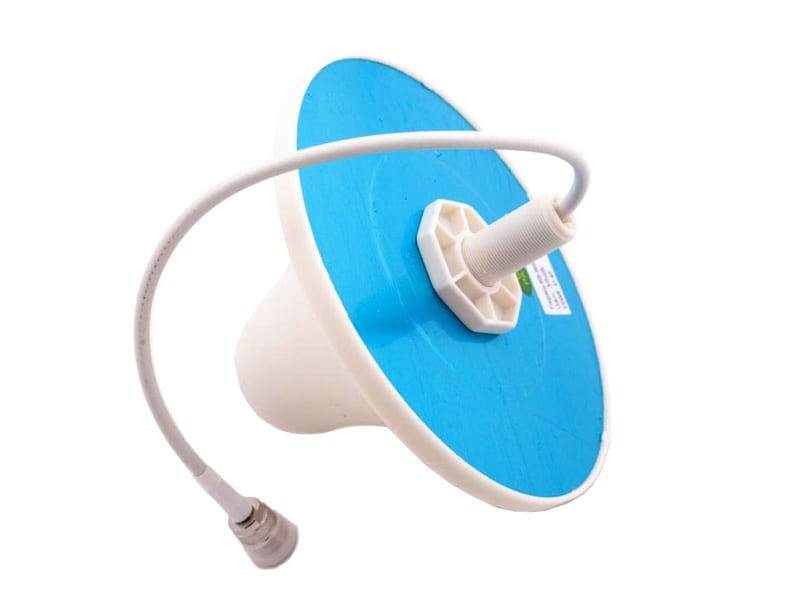

Mushroom Indoor Omni-Antenna For GSM Signal-Booster

Frequency Range

• 2G (GSM): 900 MHz

• 3G (UMTS): 2100 MHz

• 4G (LTE): 1800 MHz

• 5G (Optional): Supports up to 2700 MHz depending on model

---

Gain & Performance

• Gain: 3–5 dBi (varies by model)

• Polarization: Vertical Omni-Directional

• Beamwidth: Horizontal 360°; Vertical 85°–45°

• VSWR (Voltage Standing Wave Ratio): ≤1.5 to ≤1.8

• Impedance: 50Ω

• Maximum Power Handling: Up to 50W

• PIM (Passive Intermodulation): ≤-150 dBc

---

Physical Specifications

• Connector Type: N-Female or 4.3-10-F (varies by model)

• Mounting: Ceiling-mounted via hole

• Radome Material: ABS plastic, white (RAL9003)

• Dimensions: Approximately 182 mm (diameter) × 30 mm (height)

• Weight: Around 0.2 kg

• Operating Temperature: -55°C to +60°C

• Relative Humidity: <95%

---

Features & Benefits

• Omni-Directional Coverage providing 360° signal reception for uniform coverage

• High Gain Performance to enhance signal strength and improve call quality and data speeds

• Wide Frequency Compatibility supporting multiple GSM bands for versatile network use

• Compact mushroom-shaped design blending with indoor environments

• Easy ceiling mount installation with included hardware

• Durable construction for long-term reliability

---

Applications

Ideal for improving GSM signal strength in:

• Homes

• Offices

• Commercial buildings

• Warehouses

• Hotels
