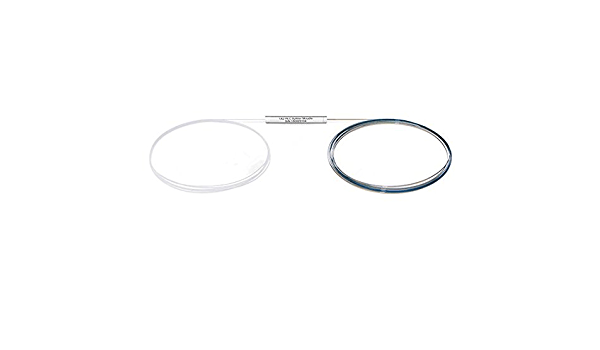

Single Mode Bare Fiber Optic PLC Splitters

The Single Mode Bare Fiber Optic PLC Splitters is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Check out our Fiber Optics page for more FTTx Solutions.

Bare PLC Fiber Optic Splitter Product Specification

Package Style	Steel Tube, Bare Fiber	Configuration Type	1×2, 1×4, 1×8, 1×16
Fiber Grade	Singlemode G.657A1	Connector Type	None
Fiber Type	Ribbon Fiber	Temperature	Operating -20 to 70°C (-4 to 158°F) Storage -40 to 85°C (-40 to 185°F)
Input/Output Fiber Diameter	250μm	Input/Output Fiber Length	1.5m
Insertion Loss	≤7.3dB	Return Loss	≥50dB
Loss Uniformity	≤0.6dB	Directivity	≥55dB
Polarization Dependent Loss	≤0.2dB	Temperature Dependent Loss	≤0.5dB
Wavelength Dependent Loss	≤0.3dB	Operating Bandwidth	1260~1650nm
Split Ratio	50/50	Steel Tube Dimensions (HxWxD)	0.16″x1.57″x0.16″ (4x40x4mm)
