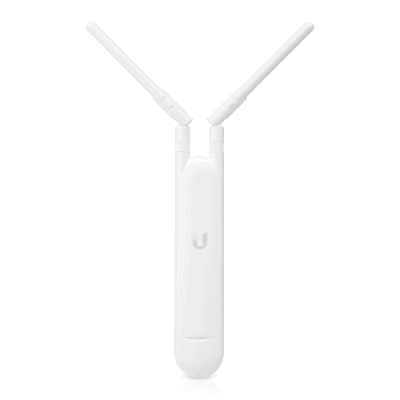

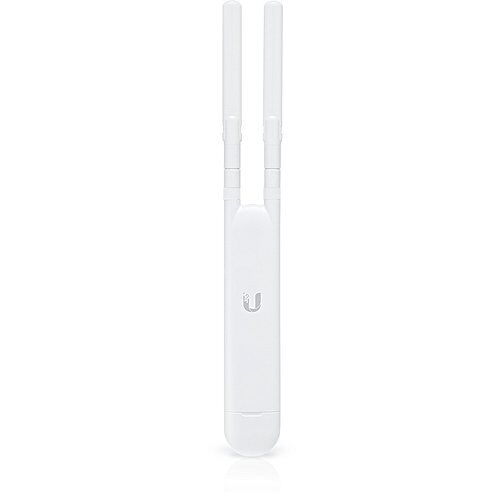

The Ubiquiti UniFi Mesh Access Point UAP-AC-M is a simultaneous, dual-band, 3×3 MIMO technology, 802.11ac dual-band wireless access point, capable of speeds of up to 1750 Mbps.

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti UniFi Enterprise Wi-Fi Access Points. The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.

Unifi Mesh Access Point Features

Networking Interface	2×2 WiFi dual band / Ethernet Gigabit
Ports	(1) 10/100/1000 Ethernet
Buttons	Reset
Antennas	2 Dualband antennas
Wi-Fi Standards	802.11a/b/g/n/ac
Power Method	24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply	24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption	8.5W
Max TX Power	20 dBm
BSSID	Up to Four per Radio
