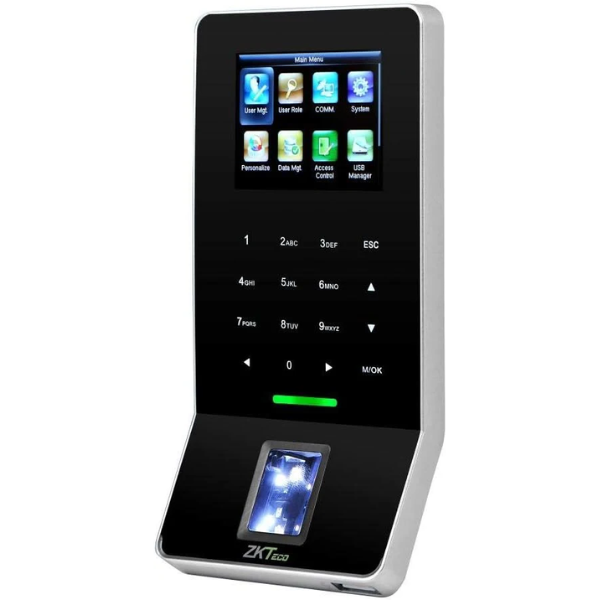

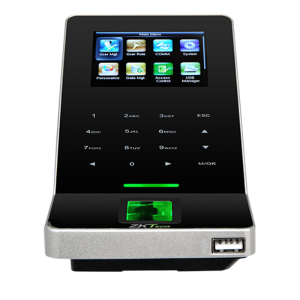

Zkteco F22 Biometric Fingerprint Time Attendance and Access

Key Specifications

• Display: 2.4-inch TFT LCD Color Screen

• Fingerprint Capacity: 3,000

• Card Capacity: 5,000 (Optional: ID or MIFARE)

• Transaction Capacity: 30,000

• Sensor: Z-ID Sensor (Optional: BioID or SilkID)

• Algorithm Version: ZKFinger VX10.0

• Communication Interfaces: RS232/485, TCP/IP, USB-host, Wi-Fi

• Access Control Interface: Supports 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

• Wiegand Signal: Input and Output

• Auxiliary Input: 1 for linkage function

• Functions: DST, Automatic Status Switch, Record Query, T9 Input, 14-digit User ID, Anti-passback, Scheduled Bell, Printer (Optional), ADMS (Optional)

• Power Supply: 12V DC, 3A

• Operating Temperature: 0°C to 45°C

• Operating Humidity: 20% to 80%

• Dimensions: 158.5 × 78.0 × 19.4 mm

• SDK and Software: Standalone SDK, ZKAccess 3.5 Software
