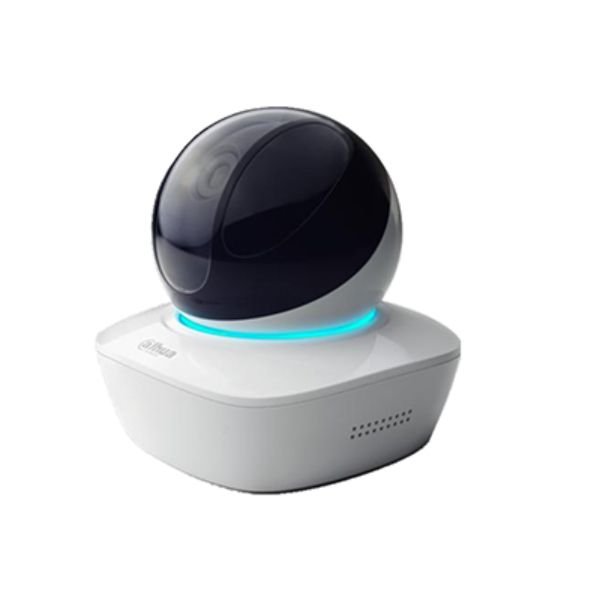

Dahua A35 WIFI Camera

Dahua IPC-A35 Wi-Fi PT Camera – Full Specifications

Camera Features

• Image Sensor: 1/3″ 3MP Progressive CMOS

• Effective Pixels: 2304 (H) × 1536 (V)

• Minimum Illumination: 0.01 Lux (Color), 0 Lux with IR on

• IR Night Vision: Up to 10 meters

• Lens: 3.6 mm fixed lens

• Field of View: Horizontal 77°, Vertical 42°

• Digital Zoom: 16x

---

Video & Imaging

• Maximum Resolution: 3MP (2304 × 1296)

• Frame Rate:

  • 3MP: Up to 20 fps

  • 1.3MP: Up to 25/30 fps

• Compression Formats: H.264, MJPEG

• Image Enhancements:

  • Backlight Compensation (BLC)

  • Highlight Compensation (HLC)

  • Digital Wide Dynamic Range (DWDR)

  • 3D Noise Reduction (3D DNR)

  • Auto White Balance (AWB)

  • Auto Gain Control (AGC)

• Privacy Masking: Supports up to 4 configurable zones

---

Pan & Tilt Functionality

• Pan Range: 0° to 355°

• Tilt Range: 0° to 90°

• Preset Positions: Up to 25 presets

• Preset Speed: Up to 100°/second

---

Network & Connectivity

• Wi-Fi Support: IEEE 802.11b/g/n (up to 50 meters in open space)

• Ethernet: RJ-45 (10/100Base-T)

• Network Protocols: IPv4/IPv6, HTTP, TCP/IP, UDP, RTSP, RTP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP

• ONVIF Compatibility: Yes

• User Access: Supports up to 20 simultaneous users

---

Storage Options

• Internal Memory: 256 MB RAM, 16 MB ROM

• MicroSD Slot: Supports cards up to 128 GB

• Edge Storage: Supports NAS and local PC recording

---

Audio Capabilities

• Built-in Microphone and Speaker: Yes

• Audio Compression: G.711A, G.711Mu, AAC

• Signal-to-Noise Ratio: >50 dB

---

General Specifications

• Power Supply: DC 5V, 2A

• Power Consumption: <8.5W

• Operating Temperature: -10°C to +45°C

• Operating Humidity: <95% RH

• Dimensions: 94.4 mm × 94.4 mm × 94.4 mm

• Weight: Approximately 215 grams

---

Remote Access & Compatibility

• Mobile Platforms: Compatible with iOS and Android devices

• Software Support: Works with Smart PSS, DSS, and Easy4ip

• Web Browsers: Supports Internet Explorer, Chrome, Firefox, Safari
