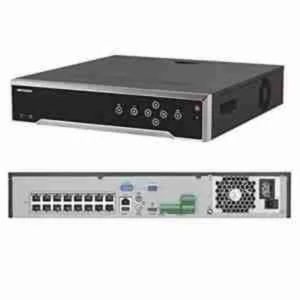

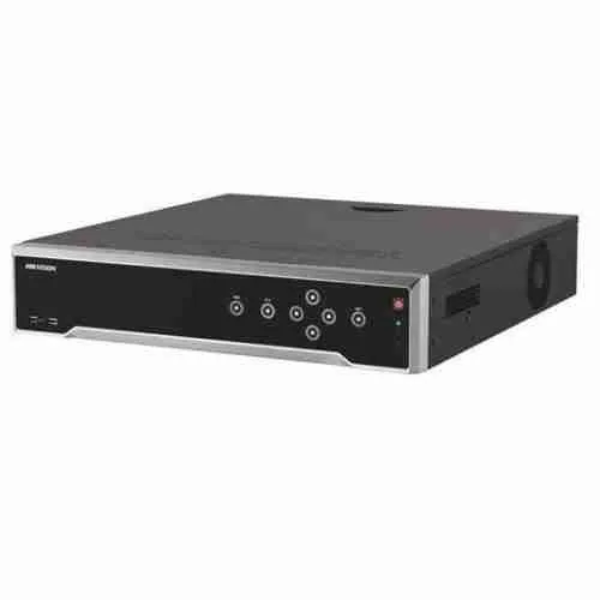

Hikvision 32 channel NVR DS-7732NXI-K4/16P

General:

• Model: DS-7732NXI-K4/16P

• Video Input: 32 IP channels

• Incoming Bandwidth: Up to 256 Mbps

• Outgoing Bandwidth: Up to 256 Mbps

• Decoding Capacity: Up to 4-ch @ 4K or 16-ch @ 1080p

• Deep Learning Support: Yes (Acusense for Human/Vehicle detection)

Video & Recording:

• Video Compression: H.265+/H.265/H.264+/H.264

• Max Recording Resolution: Up to 12 MP

• Playback:

  • Simultaneous Playback: Up to 16 channels

  • Smart Search & Smart Playback supported

• Recording Modes: Manual, Schedule, Motion detection, Event-triggered

PoE & Networking:

• PoE Ports: 16 independent ports (IEEE 802.3af/at)

• PoE Budget: Up to 200W

• Network Protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF, etc.

• Remote Access: Via Hik-Connect, iVMS-4200, or web browser

Storage:

• Hard Drive Bays: 4 SATA interfaces (up to 10 TB each)

• Total Storage: Up to 40 TB

• eSATA: 1 port

• USB: 2x USB 2.0, 1x USB 3.0

Display & Output:

• HDMI Output: 2 outputs, max 4K (3840 × 2160)

• VGA Output: 1 output (1080p)

Alarm & Audio:

• Audio Input/Output: 1-ch in, 1-ch out

• Alarm I/O: 16 in / 4 out

• Audio over IP: Supported

Other Features:

• AI Capabilities:

  • Human/Vehicle classification

  • False alarm reduction

• Third-party Camera Support: ONVIF compatible

• Operating Temperature: -10°C to +55°C

• Power Supply: 100 to 240 VAC, 50–60 Hz

• Dimensions: 445 × 400 × 71 mm

• Weight: ~6 kg (without HDDs)
