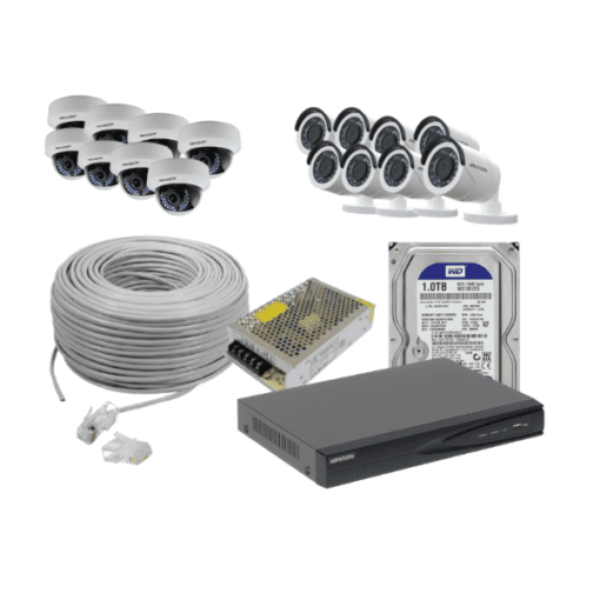

Hikvision 16 Channel NVR Kit. (16pcs 2 MP cameras, 16 channel NVR, 4TB HDD.)

Network Video Recorder (NVR)

• Model: Hikvision DS-7616NI-K2/16P

• Video Input: Supports up to 16 IP camera inputs

• Recording Resolution: Supports up to 8 MP resolution recording

• Decoding Capacity:

  • 2 channels at 8 MP (30 fps)

  • 4 channels at 4 MP (30 fps)

  • 8 channels at 1080p (30 fps)

• Bandwidth: Incoming bandwidth of up to 160 Mbps

• Video Compression: H.265+, H.265, H.264+, H.264

• Storage:

  • 2 SATA interfaces, supporting up to 10 TB per HDD

  • Comes with a pre-installed 4 TB HDD

• PoE Ports: 16 PoE (Power over Ethernet) ports, providing up to 200 W total power

• Interfaces:

  • Network: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

  • USB: 1 × USB 2.0 (front), 1 × USB 2.0 (rear)

  • Video Output: HDMI and VGA (supports up to 1920 × 1080 resolution)

  • Audio: 1-channel audio input and output

  • Alarm: 4 alarm inputs, 1 alarm output

• Power Supply: 100-240 VAC, 50-60 Hz

• Power Consumption: ≤ 15 W (without HDD and PoE off)

• Operating Conditions: -10 °C to 55 °C (14 °F to 131 °F), 10%-90% humidity

• Dimensions: 385 × 315 × 52 mm

• Weight: ≤ 3 kg (without HDD)

IP Cameras (16 pcs, 2 MP each)

• Model: Hikvision ECI-T24F2

• Image Sensor: 1/3″ Progressive Scan CMOS

• Maximum Resolution: 2560 × 1440 (2 MP)

• Lens: 2.8 mm fixed lens (horizontal field of view: 100°)

• Night Vision: EXIR 2.0 IR with up to 30 meters range

• Wide Dynamic Range (WDR): 120 dB

• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Weather Resistance: IP67-rated (outdoor use)

• Housing: Durable metal construction

Hard Disk Drive (HDD)

• Capacity: 4 TB surveillance-grade HDD

• SATA Interfaces: NVR supports up to 2 SATA interfaces for storage expansion
