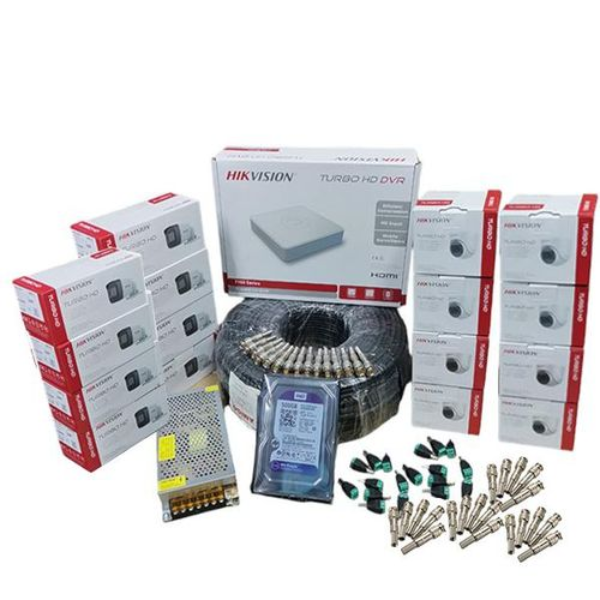

Hikvision 16 cctv color day with 16 Channel DVR Machine Ds 7100 series 300m cable full kit

CCTV Cameras (16 Units – Color Day Cameras)

• Brand: Hikvision (Turbo HD Series or equivalent)

• Type: Analog HD Bullet/Dome Cameras

• Resolution: 2MP (1080p Full HD)

• Image Sensor: 1/2.8” Progressive CMOS

• Lens: 3.6mm Fixed Lens (Wide Angle ~82°)

• Video Output: HD-TVI (High Definition Transport Video Interface)

• Day/Night Function:

  • True Day/Night (ICR)

  • Color during day, IR at night (up to 20–30 meters range)

• IR LEDs: Smart IR for night vision

• Housing:

  • Weatherproof (IP66/IP67)

  • Suitable for outdoor & indoor installation

• Power Supply: 12V DC, ~4W per camera

---

DVR (16-Channel – DS-7116HQHI-K1 or DS-7100 Series Equivalent)

• Video Input: 16 x BNC (Analog HD cameras)

• Video Compression: H.265+/H.265/H.264+/H.264

• Recording Resolution:

  • Supports up to 1080p Lite or Full HD (1920×1080)

• Audio:

  • 1–4 Audio Input Channels (RCA)

  • 1 Audio Output

• Video Output:

  • 1 HDMI (up to 1080p)

  • 1 VGA

• Playback:

  • 1–16 Channel Simultaneous Playback

  • Smart search by time/event/motion

• Storage:

  • 1 or 2 SATA Interfaces (up to 6TB each)

  • Preinstalled HDD (optional – usually 1TB to 4TB)

• Network:

  • 1 RJ-45 Ethernet Port (10/100 Mbps)

  • Hik-Connect App Support for remote view (iOS/Android)

• USB Ports: 2x USB 2.0 for backup or mouse control

• Power Supply: 12V DC

---

Cabling – 300m CCTV Combo Cable

• Cable Type: RG59 Coaxial + DC Power Cable (2-in-1)

• Length: 300 meters (to be split across all 16 cameras)

• Connectors:

  • BNC (Video) & DC Jack (Power)

• Cable Quality:

  • Shielded for long-distance transmission

  • UV-resistant for outdoor use

  • Supports signal up to 300m (with power boosters if needed)

---

Full Kit Inclusions

---

Optional Add-ons (Recommended)

• Monitor (19″–24″ LED for live viewing)

• UPS (For power backup)

• Junction Boxes or Weatherproof Housings

• Cable Clips or Trunking
