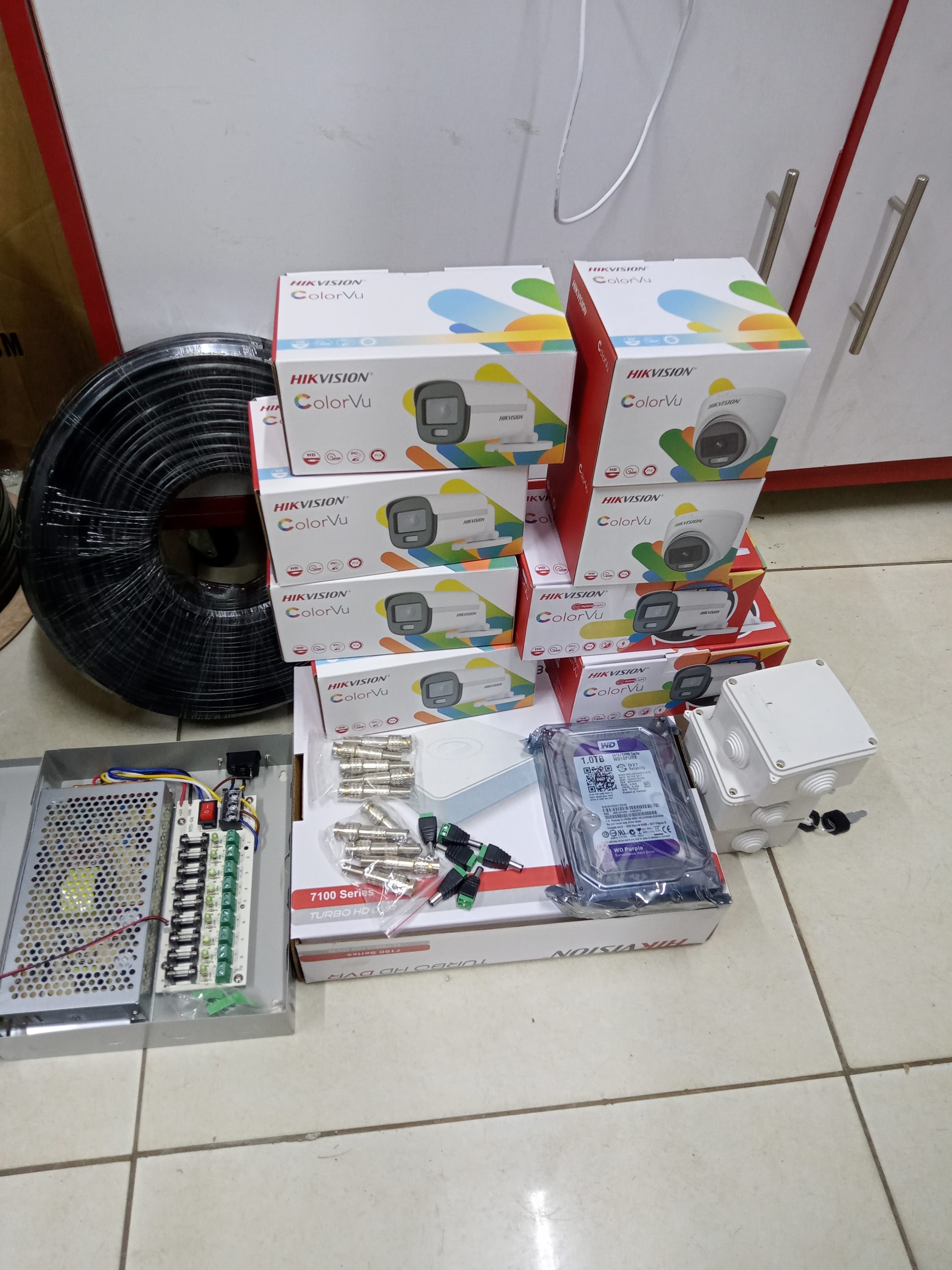

Hikvision 8 CCTV Full Color 8 Cameras 200m Cable

CCTV Cameras (8 Units – Color Day/Night)

What’s in the box

• Brand: Hikvision (Turbo HD Series or equivalent)

• Type: Analog HD Dome/Bullet Cameras

• Resolution: 2MP (1920×1080 Full HD)

• Image Sensor: 1/2.9” Progressive Scan CMOS

• Lens: 3.6mm Fixed Lens (Approx. 82° field of view)

• Day/Night Function:

  • Color image during the day and night

  • Full  night vision (up to 20–30 meters)

• IR Cut Filter: True Day/Night (ICR)

• Housing:

  • IP66 Weatherproof – suitable for outdoor & indoor use

  • Optional vandal-proof dome casing

• Power Supply: 12V DC ±10%, ~4W consumption per camera

---

DVR – Hikvision DS-7108HQHI-M1 (8-Channel DVR)

• Video Input: 8 BNC channels (supports analog HD cameras)

• Video Output:

  • 1 HDMI (up to 1080p)

  • 1 VGA

• Recording Resolution:

  • Up to 1080p Full HD

• Video Compression:

  • H.265 Pro+/H.265/H.264+/H.264

• Playback:

  • Synchronous playback: up to 8 channels

  • Smart search and motion-based playback

• Audio:

  • 1 Audio In / 1 Audio Out (RCA)

• Storage:

  • 1 SATA port (supports up to 6TB HDD)

  • Usually pre-installed with 1TB–2TB HDD (optional)

• USB Ports: 2 × USB 2.0

• Network:

  • 1 RJ-45 Ethernet port (10/100 Mbps)

  • Mobile remote access via Hik-Connect App

  • Supports P2P, DDNS, NTP, FTP, SMTP

• User Interface: USB Mouse, On-screen GUI

• Power Supply: 12V DC / 2A

---

Cabling – 200m CCTV Combo Cable

• Type: RG59 Coaxial + DC Power Cable (2-in-1 combo)

• Total Length: 200 meters (25m average per camera)

• Connectors:

  • BNC for video

  • DC plug for power

• Durability:

  • Shielded coaxial for clear signal

  • UV-resistant jacket for outdoor use

  • Supports transmission up to 200m with stable video & power

---
