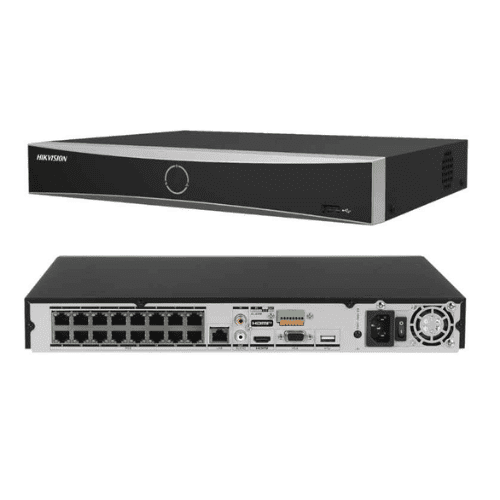

Hikvision DS-7616NXI-K2/16P 16 Channel PoE 1U K Series AcuSense 4K NVR

Hikvision DS-7616NXI-K2/16P 16-Channel PoE 1U K Series AcuSense 4K NVR Specifications

General

• Model: Hikvision DS-7616NXI-K2/16P
• Type: 16-Channel Network Video Recorder (NVR)
• Series: K Series AcuSense
• Form Factor: 1U Rackmount/Desktop

Video & Recording

• IP Camera Inputs: Up to 16 Channels
• Maximum Recording Resolution: 12MP
• Video Output: 1 × HDMI (up to 4K UHD), 1 × VGA
• Simultaneous HDMI/VGA Output: Yes
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 160 Mbps
• Synchronous Playback: Up to 16 Channels

Video Compression

• H.265+
• H.265
• H.264+
• H.264

AI & Smart Features

• AcuSense Technology
• Human & Vehicle Classification
• Motion Detection 2.0
• Facial Recognition (1-channel video stream or 4-channel face picture comparison)
• Smart Search
• Smart Playback
• Perimeter Protection
• False Alarm Reduction

PoE & Network

• 16 × RJ45 PoE Ports (IEEE 802.3af/at)
• 1 × Gigabit RJ45 LAN Port
• PoE Power Budget: 200W
• Supports Hik-Connect remote access

Storage

• 2 × SATA Interfaces
• Maximum HDD Capacity: Up to 16TB per drive (32TB total, firmware dependent)
• Supports Surveillance HDDs

Audio

• Two-Way Audio
• 1 × RCA Audio Input
• 1 × RCA Audio Output
• Supports G.711, G.722, G.726, AAC audio codecs

Interfaces

• 1 × HDMI
• 1 × VGA
• 16 × PoE Ports
• 1 × Gigabit Ethernet Port
• 2 × USB 2.0
• 4 × Alarm Inputs
• 1 × Alarm Output

Network Protocols

• TCP/IP
• DHCP
• IPv4/IPv6
• DNS
• DDNS
• NTP
• RTSP
• HTTPS
• SNMP
• ONVIF
• ISAPI
• SDK

Power

• Power Supply: 100–240V AC, 50/60Hz
• Power Consumption: ≤15W (without HDD and PoE load)

Environmental

• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10%–90%
