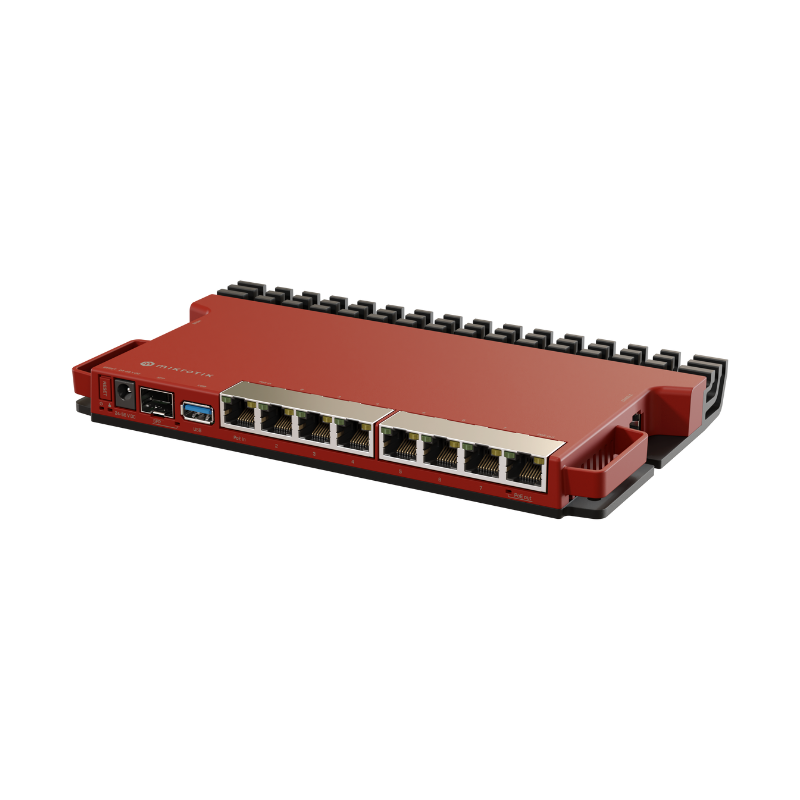

MIKROTIK L009UIGS-RM Router

L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters. And L009 IPsec hardware encryption ensures lower CPU usage without measurable performance degradation compared to the regular driver. You can expect around 60-90 Mbps throughput using a 1400 byte packet size.

All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!

Product Features

Product code	L009UiGS-RM
Architecture	ARM
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	88E6190

Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	24-56 V
Max power consumption	40 W
Max power consumption without attachments	8 W

PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA

Details
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1

SFP ports

1 (2.5G supported)
