Hikvision 4 wire HD Video Intercom Kits (DS-KIS213)

Overview

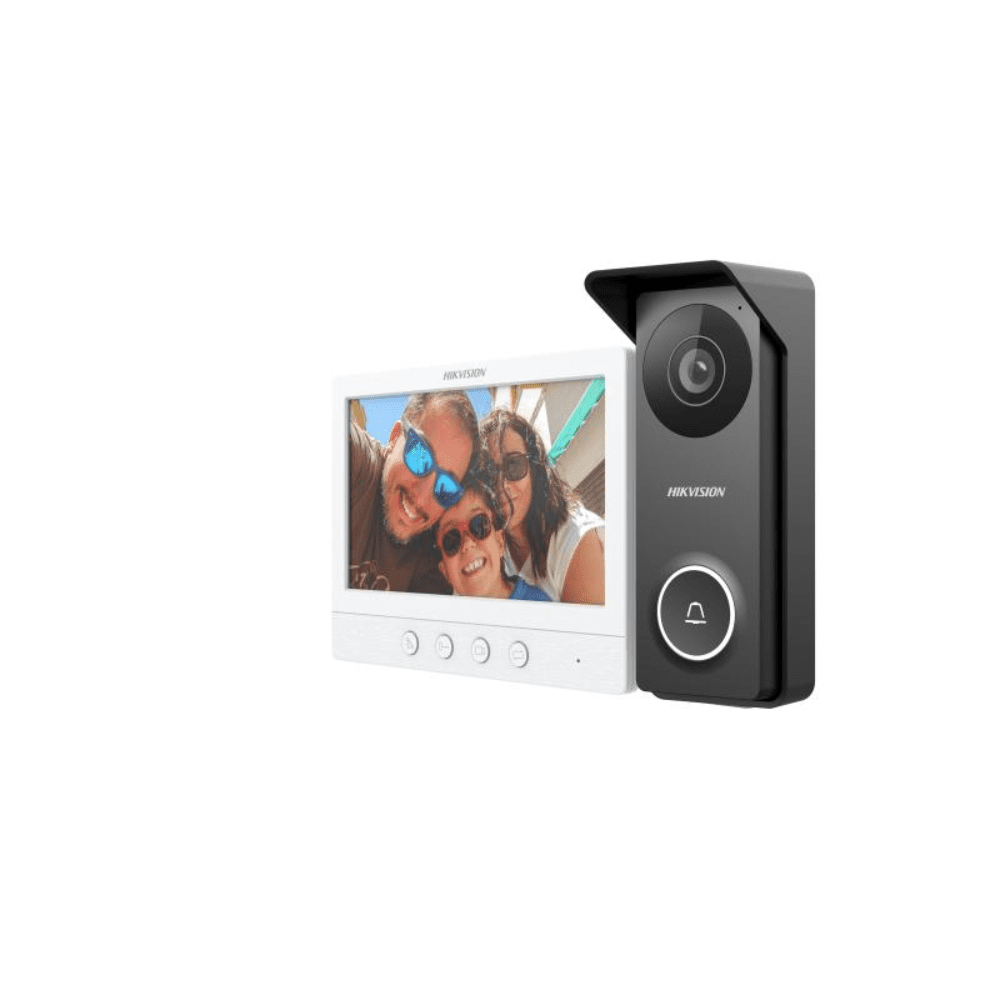

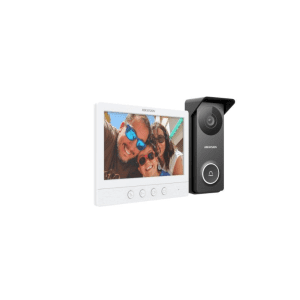

The Hikvision DS-KIS213 is a 4-wire HD video intercom kit designed for villas, homes, offices, and small commercial properties. It includes a 7-inch indoor monitor and a weatherproof HD door station, offering plug-and-play installation over existing 4-wire cabling.

Key Features

• HD TVI video quality
• 7-inch color TFT LCD monitor
• 4-wire Plug & Play installation
• Two-way audio communication
• Remote door unlocking
• IR night vision up to 3 meters
• IP65 weatherproof and IK08 vandal-resistant door station
• Supports additional indoor monitors and door stations

---

Door Station Specifications

Camera

• Resolution: 1280 × 720 (720p HD)
• Frame Rate: Up to 60fps
• Viewing Angle:
  • Horizontal: 117°
  • Vertical: 70°
  • Diagonal: 141°
• IR Supplement Light: Up to 3m night vision range

Audio

• Built-in omnidirectional microphone
• Built-in loudspeaker
• Two-way communication
• Echo suppression and noise reduction support

Door Control

• 1 relay output for electric lock control
• Relay Rating: Max 30V DC / 1A
• Supports electric strikes and magnetic locks via relay output

Physical Features

• One call button
• Metal housing
• Surface mounting
• Protection Rating:
  • IP65 (water and dust resistant)
  • IK08 (impact resistant)
• Dimensions: 145 × 55 × 24 mm

Environmental

• Operating Temperature: -30°C to 60°C
• Humidity: 10% to 90% RH

---

Indoor Monitor Specifications

Display

• Screen Size: 7-inch TFT LCD
• Resolution: 1024 × 600
• Color Display
• Physical button operation

Audio

• Built-in microphone
• Built-in speaker
• Full duplex hands-free communication

Capacity

• Supports up to:
  • 2 indoor extension monitors
  • 2 door stations
  • 1 analog CCTV camera input

Interfaces

• Four-wire interface
• BNC input for analog camera
• DIP switch configuration
• Debug port

Power

• Power Supply: 12V DC
• Power Consumption: ≤ 4W

Physical

• Surface mount installation
• Dimensions: 178 × 132 × 19 mm
• Operating Temperature: -10°C to 55°C
