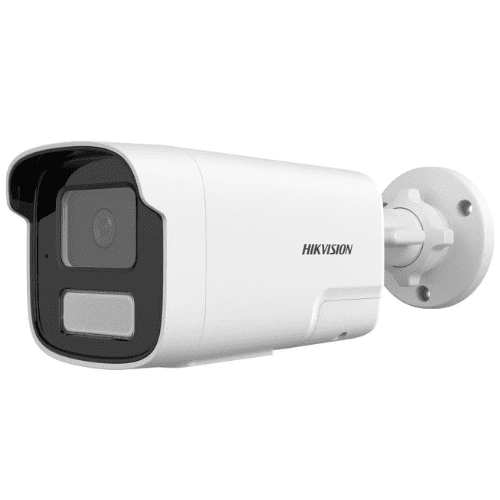

Hikvision DS-2CD1T83G2-LIUF/SL 8 MP Smart Hybrid Light Fixed Bullet Network Camera

Camera & Imaging

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Maximum Resolution: 3840 × 2160 (8 MP Ultra HD)
• Minimum Illumination:
  • Color: 0.01 Lux @ F2.0
  • 0 Lux with supplemental light
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR Cut Filter
• Wide Dynamic Range: 120 dB WDR
• 3D DNR Noise Reduction
• BLC and HLC Image Enhancement

Lens

Available Lens Options:

• 4 mm Fixed Lens
• 6 mm Fixed Lens

4 mm Lens

• Horizontal FOV: 90°
• Vertical FOV: 49°
• Diagonal FOV: 108°

6 mm Lens

• Horizontal FOV: 50°
• Vertical FOV: 28°
• Diagonal FOV: 58°

Smart Hybrid Light

• IR Light + White Light
• Intelligent Light Switching
• IR Distance: Up to 50 m
• White Light Distance: Up to 50 m
• Smart illumination modes for better night visibility

Smart Detection

• Human Detection
• Vehicle Detection
• Motion Detection 2.0
• Reduced false alarms from animals and moving objects

Video Features

• Main Stream:
  • 3840 × 2160 @ 15 fps
• Compression:
  • H.265+
  • H.265
  • H.264+
  • H.264
• Supports dual video streams
• Variable and Constant Bit Rate modes

Audio & Active Deterrence

Built-In:

• Microphone
• Speaker

Functions:

• Two-Way Audio
• Audible Warning
• Flashing Strobe Light Alarm
• Active Deterrence against intruders

Storage

• Built-in MicroSD Card Slot
• Supports microSD cards up to 512 GB
• Edge recording supported

Network Features

• 10/100 Mbps RJ45 Ethernet Port
• ONVIF Compatible
• IPv4/IPv6 Support
• RTSP
• HTTPS
• FTP
• SMTP
• Compatible with Hik-Connect and Hikvision NVRs

Power

• 12 V DC ±25%
• PoE IEEE 802.3af
• Maximum Power Consumption: Approximately 12 W

Environmental Protection

• IP67 Weatherproof Rating
• Dust and Water Resistant
• Operating Temperature:
  • -30°C to 60°C

Physical Specifications

• Dimensions: 83.7 × 80.7 × 205.6 mm
• Weight: Approximately 1.2 kg
• Metal and Plastic Construction
