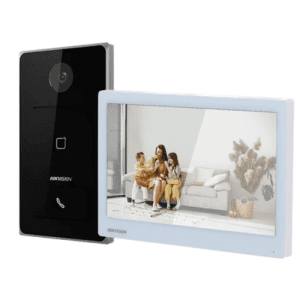

Hikvision DS-KIS608-P IP Video Intercom Kit Detailed Specifications

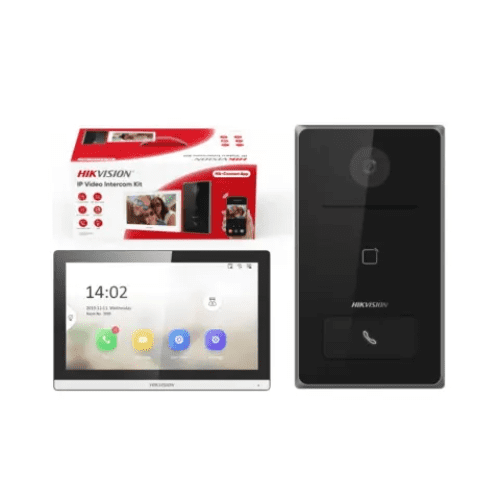

Package Contents

• 1 × DS-KV6133-WME1 Outdoor Door Station
• 1 × DS-KH6350-WTE1 Indoor Monitor
• 1 × 32GB MicroSD Card
• 2 × Power Adapters
• Surface Mount Accessories

Outdoor Door Station (DS-KV6133-WME1)

Camera

• 2 MP HD Camera
• 1/3″ CMOS Sensor
• Resolution: 1920 × 1080
• Horizontal Viewing Angle: 129°
• Vertical Viewing Angle: 75°
• IR Night Vision
• BLC, WDR and DNR Image Enhancement

Audio

• Built-in Microphone
• Built-in Speaker
• Two-Way Audio Communication
• Noise Suppression and Echo Cancellation

Access Control

• One Mechanical Call Button
• Built-in Mifare Card Reader (13.56 MHz)
• Supports up to 2,000 Users
• Supports up to 10,000 Cards
• 1 Relay Output for Electric Lock
• RS-485 Interface
• 4 Alarm Inputs
• Tamper Alarm

Environmental

• IP65 Weatherproof Rating
• Operating Temperature: -40°C to 53°C

Power

• IEEE 802.3af PoE
• 12V DC

---

Indoor Monitor (DS-KH6350-WTE1)

Display

• 7-inch TFT Capacitive Touch Screen
• Resolution: 1024 × 600
• User-Friendly Interface

Network

• 10/100 Mbps Ethernet Port
• Wi-Fi 2.4 GHz (802.11 b/g/n)
• SIP 2.0 Protocol
• RTSP Support

Storage

• Includes 32GB TF Card
• Supports MicroSD Cards up to 128GB

Alarm Interfaces

• 8 Alarm Inputs
• 2 Relay Outputs

Audio

• Built-in Microphone
• Built-in Speaker
• Hands-Free Communication

Dimensions

• 175 × 113.5 × 21 mm

Operating Temperature

• -10°C to 50°C

---

Smart Features

• Remote Door Unlock via Hik-Connect App
• Live Video Viewing
• Visitor Snapshot Recording
• Video Intercom Communication
• Motion Detection Support
• Push Notifications to Mobile Phones
• Supports iVMS-4200 Software
• Supports Expansion to 16 Indoor Monitors
• Easy Setup Wizard
• One-Touch Calling
