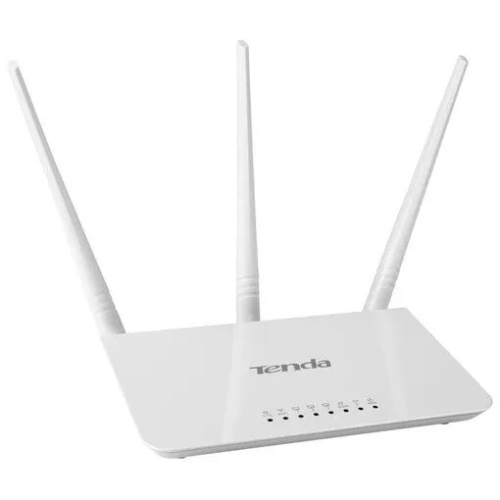

Tenda F3 300Mbps Wi-Fi Router

Hardware Specifications

• Wi-Fi Standards: IEEE 802.11b/g/n

• Frequency Band: 2.4 GHz only

• Max Wi-Fi Speed: 300 Mbps

• Ports:

  • 1 × WAN (10/100 Mbps)

  • 3 × LAN (10/100 Mbps)

• Antennas: 3 × 5 dBi fixed omnidirectional external antennas

• Power Supply: DC 9V / 0.6A

• Power Consumption: Approx. 1.9W (idle) to 3.3W (max)

• Dimensions: Approx. 185.6 × 118.4 × 31.2 mm

• Buttons: 1 × Reset/WPS combo button

• LED Indicators: Power, System, Wi-Fi, LAN, WAN, WPS

---

Wireless Features

• Transmission Power: <20 dBm

• Security Protocols: WPA-PSK, WPA2-PSK, WPA/WPA2 Mixed

• Wireless Modes:

  • Router

  • Universal Repeater

  • WISP

  • Access Point

---

Software Features

• Internet Connection Types: Dynamic IP, Static IP, PPPoE

• QoS: IP-based bandwidth control

• DHCP: Server, Client List, Address Reservation

• VPN Pass-through: PPTP, L2TP, IPsec

• DDNS Support: Supports providers like DynDNS, Oray

• Firewall:

  • DoS Protection

  • Block WAN Ping

  • IP/MAC/URL filtering

• Parental Controls: Blacklist/Whitelist

• System Tools:

  • Firmware upgrade

  • Backup/restore

  • System log

  • MAC clone

  • Wi-Fi scheduling

---

Environmental Conditions

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% – 90% (non-condensing)

• Storage Humidity: 5% – 90% (non-condensing)

---

Use Case Summary

• Suitable for small homes or offices

• Covers up to ~200 square meters

• Ideal for HD streaming, web browsing, and light gaming

• Affordable and easy to set up
