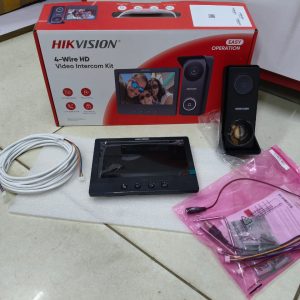

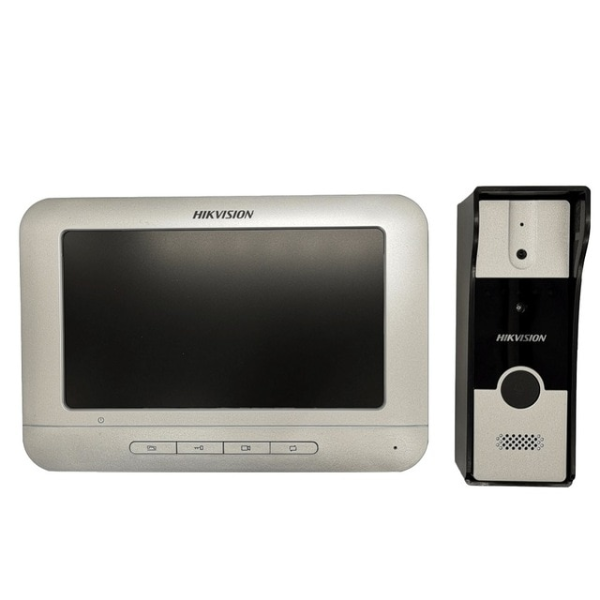

Hikvision Video Door Phone / Intercom kit model DS-KH2230T

Display

• Screen Size: 7-inch

• Type: Colorful TFT

• Resolution: 1280 × 720 pixels

• Operation Method: Physical buttons for user-friendly operation

Audio

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

Capacity

• Indoor Extensions: Supports cascading up to three indoor stations within the intercom system

• Doorphone Connections: Supports up to two door stations

• Analog Camera Support: Can connect to one external analog camera for monitoring

Interfaces

• Four-Wire Interface: Includes four interfaces—two for indoor extensions and two for doorphones

• Power Supply Input: 12V DC

• BNC Connector: One BNC interface for video input

• Debugging Port: Available for system diagnostics

General

• Buttons: Four physical buttons for call management, unlocking, live view, and camera switching

• Installation: Surface mounting

• Power Consumption: ≤ 5 W

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Operating Humidity: 10% to 90% (non-condensing)

• Dimensions: 178 mm × 132 mm × 19 mm

• Weight: Approximately 250 g
